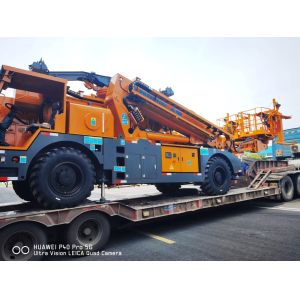

Dual Power Diesel Electric Arch Assembly Robot for Tunnel Maximum Load-bearing Capacity of The Auxiliary Arm 1500Kg
Product Description:
Breakthrough in Plateau Adaptability
By using turbocharging matching and ECU high-altitude calibration technology, the rated power output can be maintained at an altitude of 4500 meters and in extreme environments ranging from -25 ℃ to 50 ℃, with a power attenuation rate of less than 8% (industry average of 15%). The hydraulic system is equipped with a constant power control and oil temperature adaptive adjustment module to solve the problem of starting at low temperatures on high altitudes.
Core Performance Advantages
Full coverage capability of construction methods: Unique folding+telescopic three arm structure, supporting synchronous construction of full section/two step/three step, with a maximum of 6 high-speed railway double track tunnel arches installed per shift (3 traditional equipment). The 7-degree-of-freedom robotic arm is equipped with a millimeter level laser positioning system, and the arch docking error is controlled within ± 3mm.
Intelligent homework system: Integrate CAN bus control system to achieve pre programming of arm movement trajectory, collision warning, and automatic obstacle avoidance functions. The remote monitoring platform can view equipment operating parameters in real time, generate 3D construction logs, and support big data analysis of over excavation and under excavation.
Safety and Humanized Design
Multi protection system: The patented folding protective shield (CN222879688U) can be unfolded within 0.5 seconds to form a 2.5m ² anti rockfall area. Mechanical arm hydraulic locking+electrical interlock dual safety, preventing fixture failure caused by sudden oil pipe rupture.
Human Machine Engineering Optimization: Wireless remote control with a radius of up to 50 meters allows operators to stay away from dangerous areas on the palm face. The centralized lubrication system reduces maintenance time by 60% and is equipped with a high-altitude oxygen cabin type cab.
Features:
High Altitude Railway Construction
Realizing continuous operation at an altitude of 4300 meters in the Sichuan Tibet Railway project is a remarkable feat. The monthly arch installation progress is currently 15% ahead of schedule, showcasing exceptional efficiency and dedication in the construction process.
Urban Underground Space
The power mode's implementation in the construction of Shenzhen Metro Line 14 is a significant advancement. Achieving noise control below 65dB is crucial for meeting the environmental protection requirements, especially during nighttime construction activities. This innovative approach ensures minimal disturbance to the surroundings.
Emergency Rescue Scenario
The 2024 Gansu tunnel collapse accident highlighted the importance of preparedness and quick response. The dual power system utilized during the incident ensured 72 hours of uninterrupted support operation, demonstrating effective emergency protocols and ensuring the safety of those involved.
Technical Parameters:
| Maximum Load-bearing Capacity of The Main Arm |
3000Kg |
| Model |
Arch Installation Robot KGM12300CSG |
| Maximum Load-bearing Capacity of The Auxiliary Arm |
1500Kg |
| Max. Operating Width |
25m |
| Dual Power |
Diesel & Electric |
| Transportation Dimension (L X W X H) |
9200×2600×3500mm |
| Ground Clearance |
450mm |
| Min. Operating Width |
5m |
Applications:
Product Application Occasions and Scenarios for the Arch Installation Trolley:
The POTENTIAL / POTENCY Arch Installation Trolley (Model: KGM12300CSG) is a versatile and reliable tool designed for various applications in the construction industry. With its sturdy construction and high load-bearing capacity, this trolley is ideal for a wide range of installation projects related to arches and other structures.
Here are some of the key application occasions and scenarios where the Arch Installation Trolley can be effectively used:
- 1. Architectural Projects: The trolley is perfect for transporting and installing arches in architectural projects, whether in commercial buildings, residential complexes, or public spaces.
- 2. Construction Sites: The trolley is well-suited for use at construction sites where heavy arches need to be lifted and positioned with precision.
- 3. Event Venues: The trolley can be used in event venues for setting up temporary arches for special occasions such as weddings, parties, and corporate events.
- 4. Industrial Facilities: Industrial facilities requiring the installation of arches for structural support or design purposes can benefit from the efficiency of this trolley.
- 5. Landscaping Projects: Landscaping companies can utilize the trolley for installing decorative arches in gardens, parks, and outdoor spaces to enhance the aesthetic appeal.
Customization:
Product Customization Services for the Arch Installation Trolley
Brand Name: POTENTIAL / POTENCY
Model Number: KGM12300CSG
Place of Origin: CHINA
Certification: ISO9001:2015
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: FR or Bulk Ship
Delivery Time: 45 working days
Payment Terms: T/T, L/C
Supply Ability: 120 units per year
Maximum Load-bearing Capacity of The Main Arm: 3000Kg
Model: Arch Installation Robot KGM12300CSG
Ground Clearance: 450mm
Min. Operating Width: 5m
Max. Operating Width: 25m
Keywords: Arch Assembly Machine for Tunnel, Arch Installation Carrier, Arch Assembly Robot for Tunnel
Packing and Shipping:
Product Packaging:
The Arch Installation Trolley is carefully packed in a sturdy cardboard box to ensure safe transportation. The product is securely wrapped in protective packaging material to prevent any damage during shipping.
Shipping Information:
Once your order is confirmed, the Arch Installation Trolley will be dispatched within 1-2 business days. We offer standard shipping options, and delivery times may vary depending on your location. You will receive a tracking number to monitor the status of your shipment.
